Product Model:OKY3472

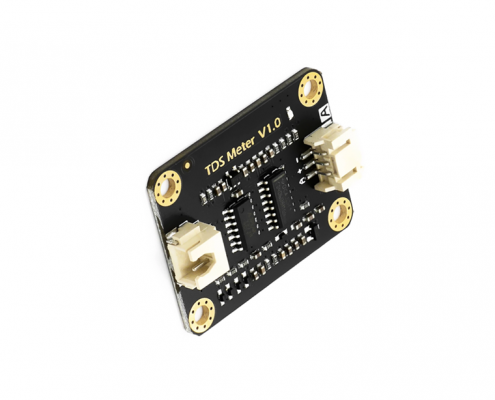

TDS Meter V1.0 Development Board Water Meter Filter Measuring Water Sensor Module
Product Description
100% Brand New & High Quality
- 1.The sensor is measuring the electrical conductivity of the water,and computing TDS(Total Dissolved Solids) value in PPM (Parts per Million).
2.Completely pure water is an almost perfect insulator,and the conductivity and TDS are near zero.
3.Common drinking water has small amounts of salts and minerals which allow the water to conduct electricity.
4.The conductivity is very closely linear with the concentration of salts,so this measurement is commonly used to quickly evaluate the purity of water,and especially the effectiveness of RO water treatment.
Product Details
Specification:
1.Input Voltage:DC 3.3 ~ 5.5V
2.Output Voltage:0 ~ 2.3V(for example,500 ppm water will create 1.15 V signal)
3.Working Current:3 ~ 6mA
4.TDS Measurement Range:0 ~ 1000ppm
5.TDS Measurement Accuracy:± 10% F.S. (25 ℃)
6.Board Mounting:four 3.2mm fixed holes
7.Color:As picture
8.MOQ:10pcs
9.Material:PVC
10.Origin:CN
Package Including:
1 * TDS Meter V1.
