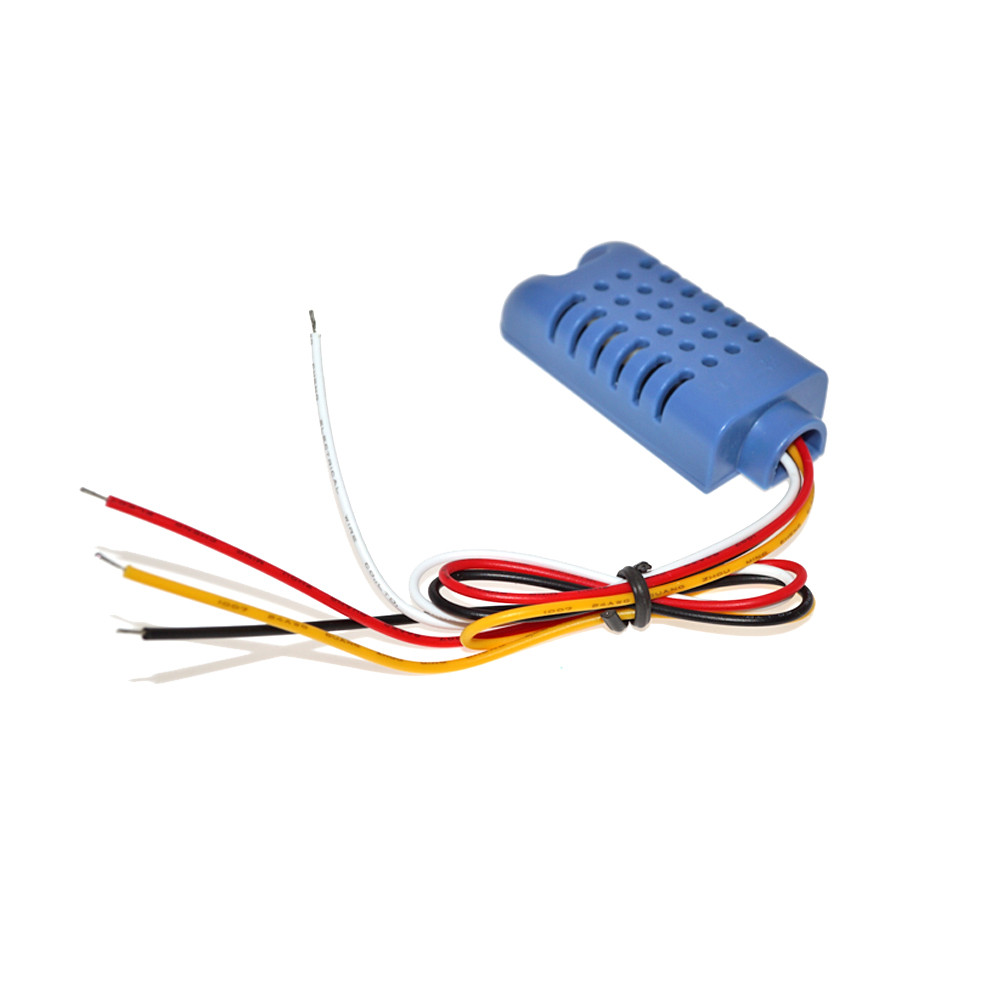

AMT1001 4.75V-5.25V Resistive Temperature Humidity Sensor Module Probe
- With temperature compensation.
- Single-chip calibration linear output.
- Supply voltage (Vin): DC5V ± 5%.
- Current Consumption: 2mA (MAX 5mA).
- Operating temperature range: 0 to 60 ° C.
- Humidity range: 95% RH (non condensing).
- Humidity measuring range: 20 to 95% RH.
- Storage temperature range: 0 to 60 ° C.
- Storage humidity range: 95% RH (non condensing).
- Humidity measurement accuracy: ± 5% RH (condition: at25 ℃).
- The standard humidity output voltage: (conditions: at25 ℃, Vin = 5.0V).
Product Description
- With temperature compensation.
- Single-chip calibration linear output.
- Supply voltage (Vin): DC5V ± 5%.
- Current Consumption: 2mA (MAX 5mA).
- Operating temperature range: 0 to 60 ° C.
- Humidity range: 95% RH (non condensing).
- Humidity measuring range: 20 to 95% RH.
- Storage temperature range: 0 to 60 ° C.
- Storage humidity range: 95% RH (non condensing).
- Humidity measurement accuracy: ± 5% RH (condition: at25 ℃).
- The standard humidity output voltage: (conditions: at25 ℃, Vin = 5.0V).
