TOF050F Laser Distance Sensor Module — OKY3266 – OKYSTAR

Product Model: OKY3266

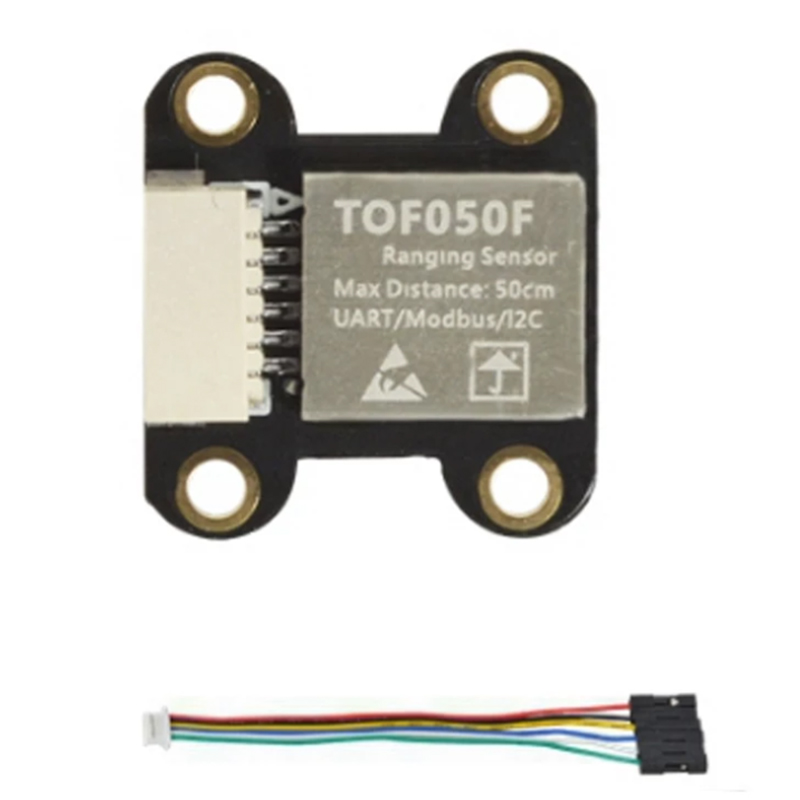

High Precision Laser Distance Sensor Module TOF050F Laser Distance Sensor Module

Product Description

Recyclable, environmentally friendly recycling
The structure is clear and easy to use
Breadboard can be assembled in fixed units

Uses: experiment, test, robot

Call on Whatsapp

Share This Product

Product Details

Product Description

Model：T0F050F

Ranging Chip:VL6180

Measuring distance:50CM(Max)

Measurement dead zone: 0-2CM

Measurement mode(Range): high precision,200mm

Middle distance,400mm

Long distance,500mm

Infrared emission mechanism: 850nm

F0V: 25°

Communication mode:UART/Modbus/IIC

Operating Voltage:3.0V-5V(DC)

Operating current:40mA(Max)

Operating temperature:-20℃-70℃

Storage temperature:-20℃-80℃
