Product Model:OKY3402-0

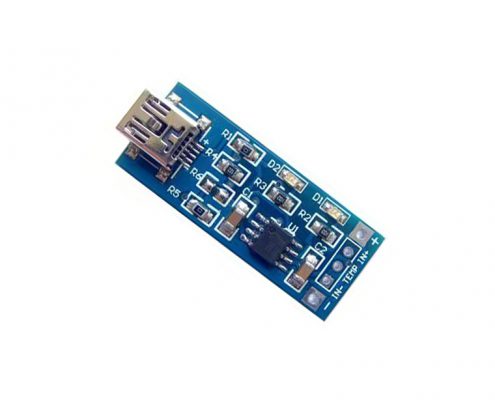

Mini USB TP4056 1A Lithium Battery Charging Module
Product Description
Description:
1.Onboard TP4056 lithium battery charging management chip;
- The onboard MINI USB head can be directly connected to the computer USB port;
- The charging board can also be powered by (IN+ and IN-) pin headers;
- Reserve the TEM pin header, which can be used as a lithium battery temperature detection;
- D1 indicator light is on when charging, and D2 indicator light is on when charging is complete.
Product Details
Product Description
Specification:
- Charging current:1000mA
- Input voltage:5V
3.charging voltage:4.2V
- Over-discharge protection:voltage 2.5V
5. OIver-current protection:current 3.2A
6. Application:For stem education
7. Size: 37*15MM - Color:Blue
9. Weight:20g
10.MOQ:25pcs
Package Including:
1 * TP4056 Battery Charging Module
