Product Model:OKN510-7

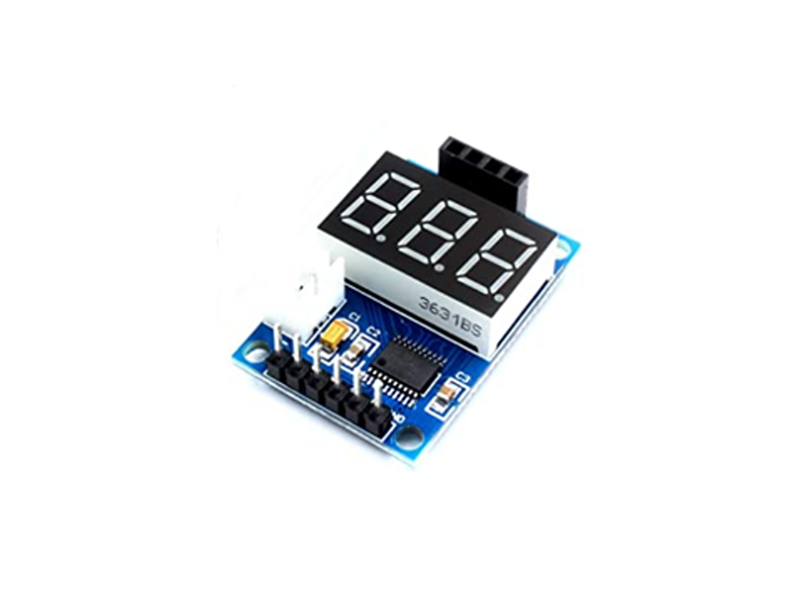

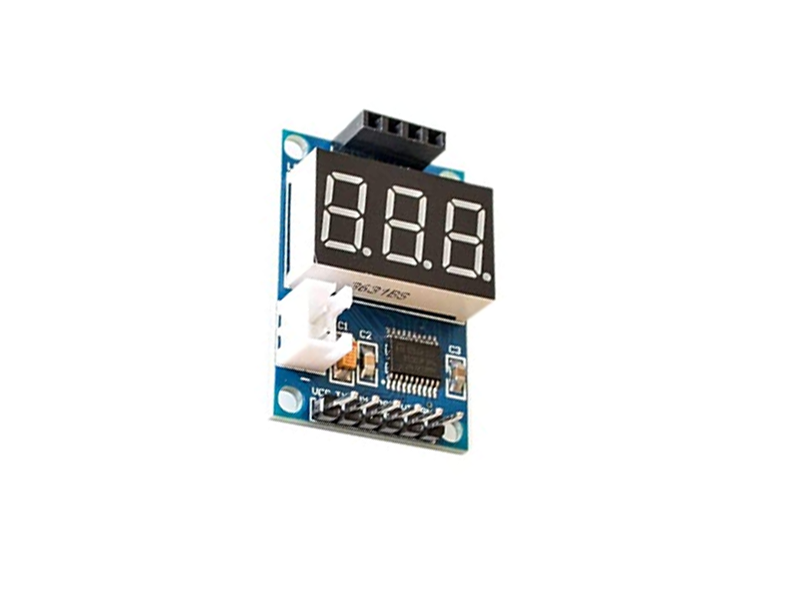

HC-SR04 Display Range Finder Ultrasonic Distance Measurement Module Test Board
Product Description
1.On board STM8S103 high-performance microprocessor.
2.With digital tube display.
3.Serial port data output.
4.CC, GND: 5V power interface.
5.2.54mm White Socket: 5V power interface.
6.TX: module serial port transmits pin.
7.RX: module serial port receive pin.
8.NRST, SWIN: preset STM8 program download port.
Product Details
Feature:
1.On board STM8S103 high-performance microprocessor.
2.With digital tube display.
3.Serial port data output.
4.CC, GND: 5V power interface.
5.2.54mm White Socket: 5V power interface.
6.TX: module serial port transmits pin.
7.RX: module serial port receive pin.
8.NRST, SWIN: preset STM8 program download port.
Specification:
1.Colour: Blue
2.Material: PCB
3.Size: 8*8*2CM
4.Valid Measurement Distance: 3-400CM
5.Max Error: 5V
6.Board Size: 36 * 25 * 12MM
Package Including:
1 * Ultrasonic Distance Measurement Control Board
