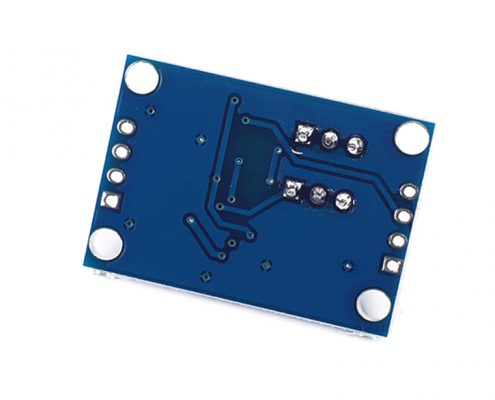

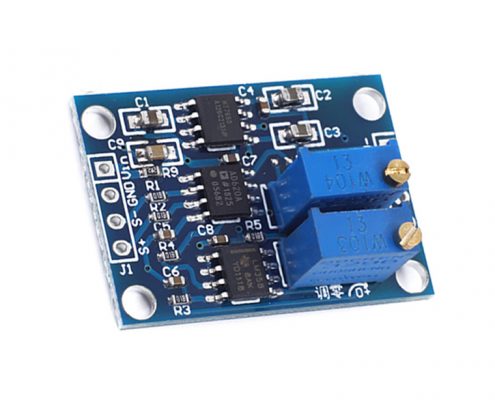

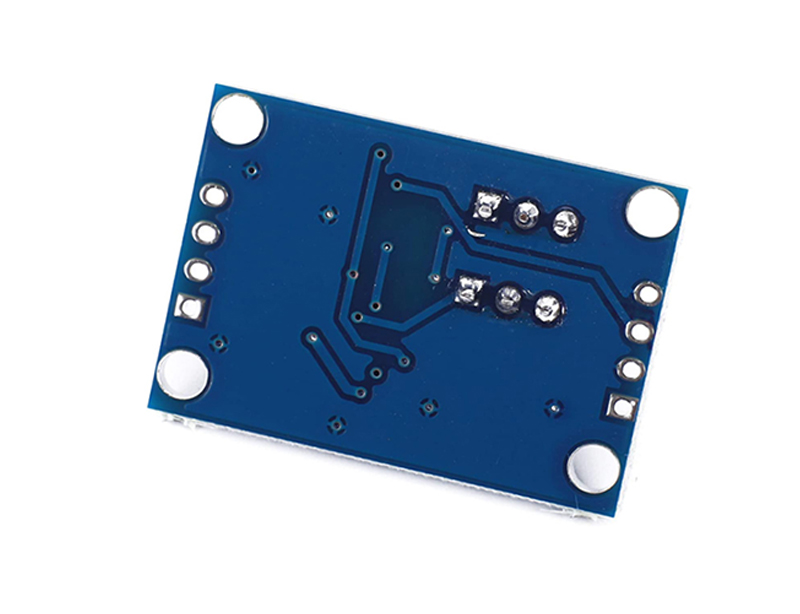

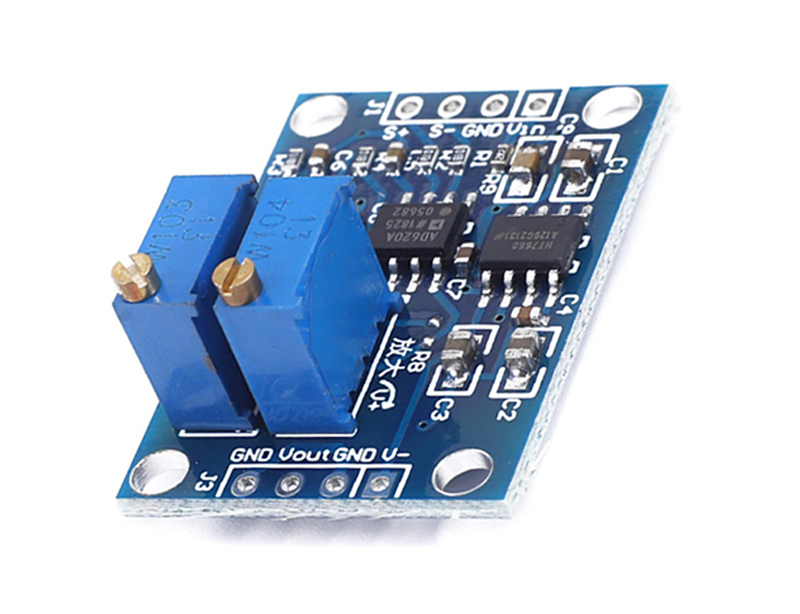

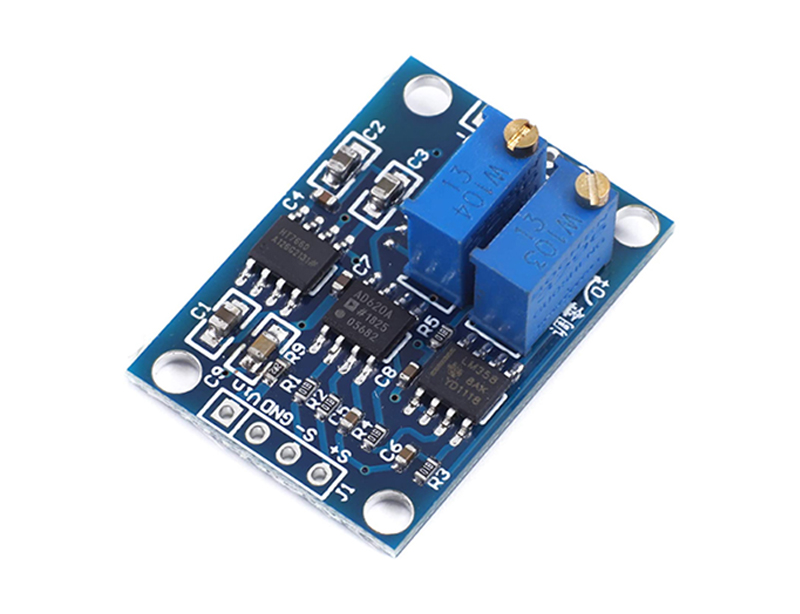

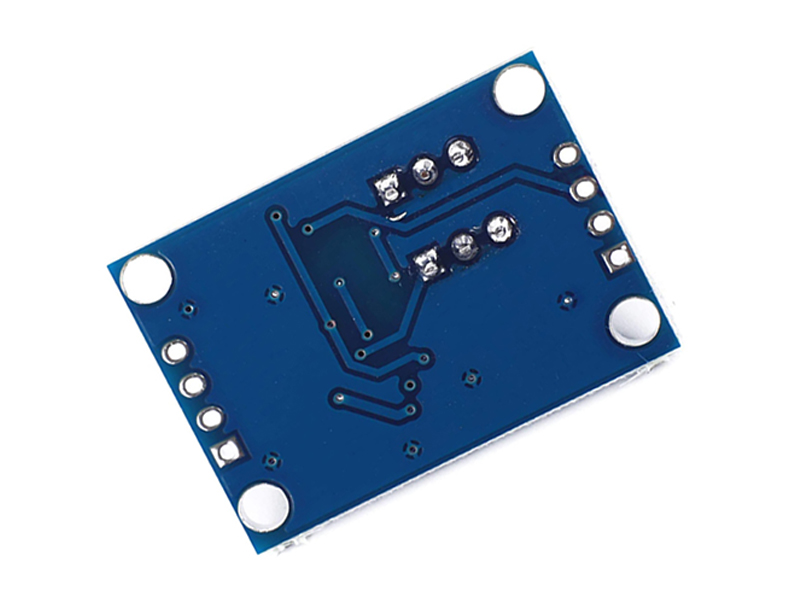

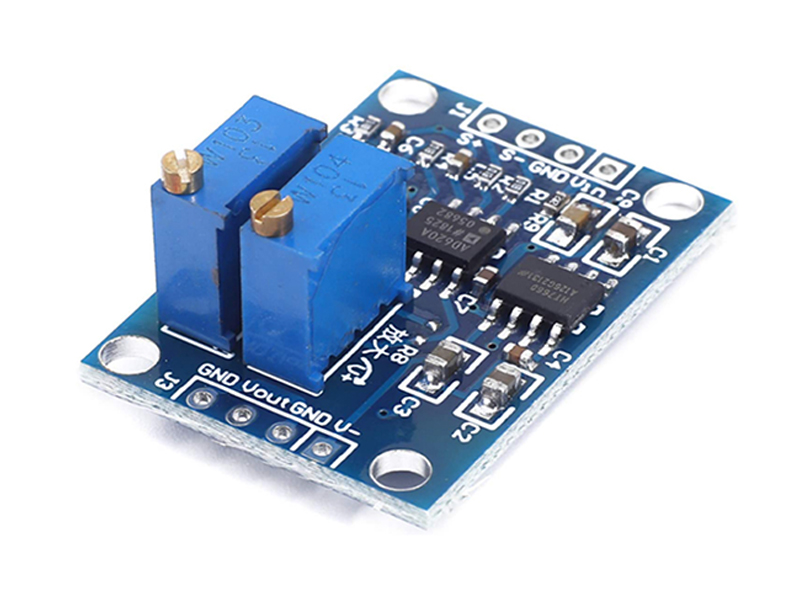

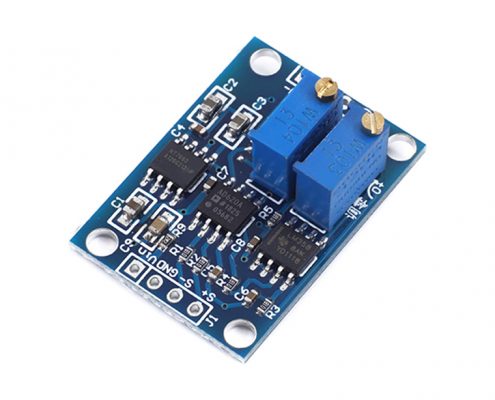

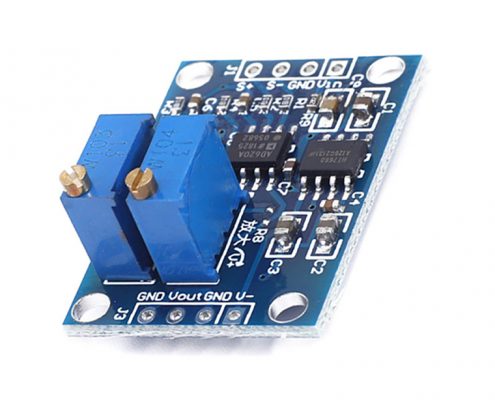

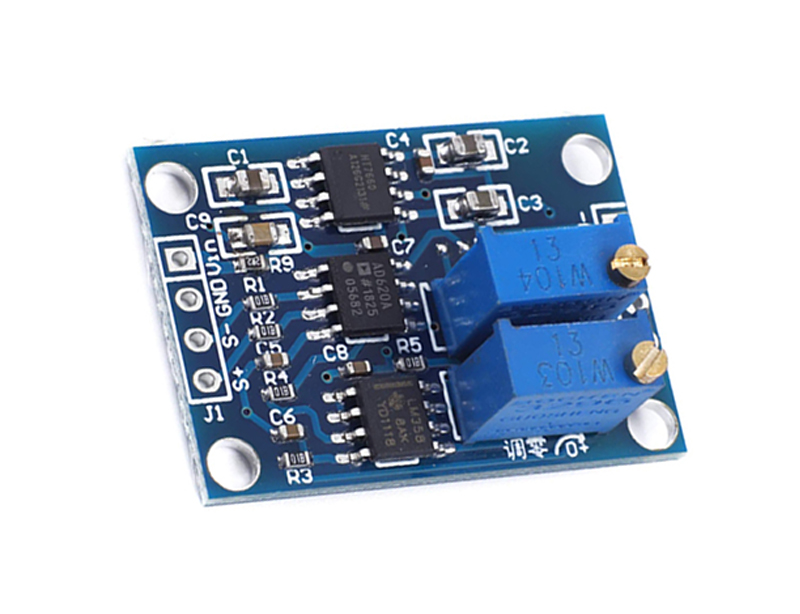

1.High Precision UV / MV Voltage Amplifier Small Signal Instrumentation Amplifier AD620 Transmitter Using AD620 as the main amplifier, can amplify UV, MV voltage.
2.Magnification 1.5-10000 magnification, adjustable. High precision, low offset, better linearity. Adjustable zero to improve accuracy. Can be used for AC, DC signal amplification.
Feature:
1.Input voltage: 3-12VDC.
2.Magnification: 1.5-1000 times adjustable
3.Zero adjustable Signal input voltage: 100uV – 300mV
4.Signal output range: ± (Vin-2V)
5.Negative voltage output: higher than -Vin.
6.As the negative voltage chip output resistance problem, the actual output is higher than -Vin, the greater the load power, the greater the negative voltage drop.
Offset voltage: 50μV.
Input bias current: 1.0nA (max).
Common mode rejection ratio: 100 dB
Offset voltage drift: 0.6μV / °(maximum).
Stability: 2μV/month
maximum Size: 32 * 22mm
Package Included:
1pc* Voltage Amplifier Transmitter
