1.Digital potentiometer changes are stepped or incremental, and the tissue changes into linear changes.
2.Temperature compensation function: Resistance error between terminals: ±20% Sliding end position data can be saved for a long time
3.Higher resistance resolution: 1%
Description:
1.Digital potentiometer changes are stepped or incremental, and the tissue changes into linear changes.
2.Temperature compensation function: Resistance error between terminals: ±20%
Sliding end position data can be saved for a long time
3.Higher resistance resolution: 1%
Parameter:
1.Working Voltage: 5V
2.Total Resistance: 100KΩ
3.Terminal Voltage: -5V To 5V
4.Number Of Taps: 100
5.Interface Mode: CS, U/D, INC
6.Resistance Increase Mode: linear
7.Working Current: 3MA
8.Temperature: -40 To +85 °C
9.Tap position is automatically saved when power is off
Packaging Included:

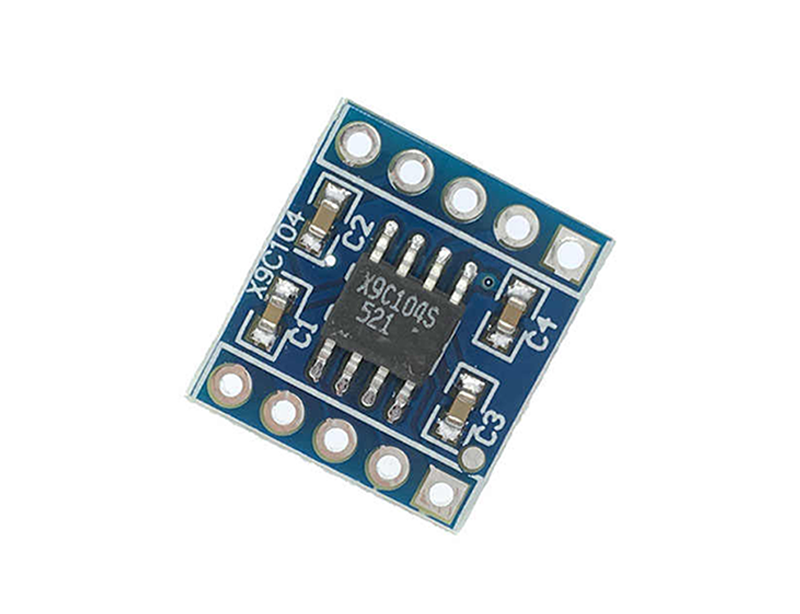

1pc* X9C104 Digital Potentiometer Module
