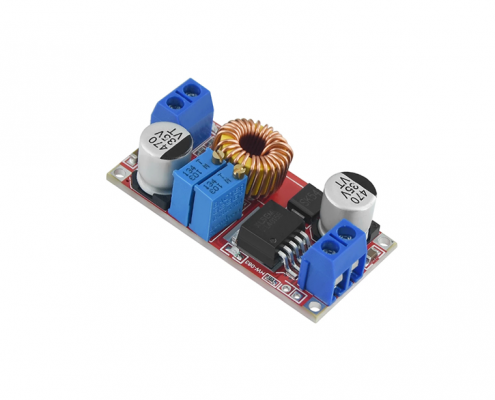

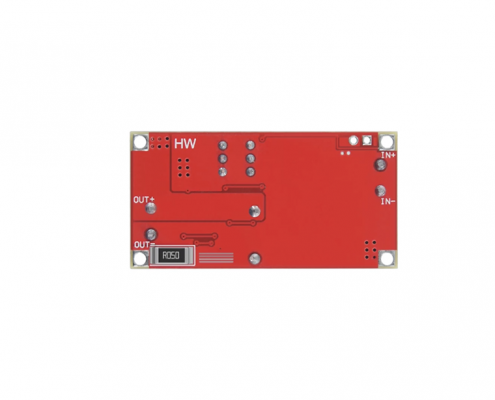

Product Model:OKY3502-3-1

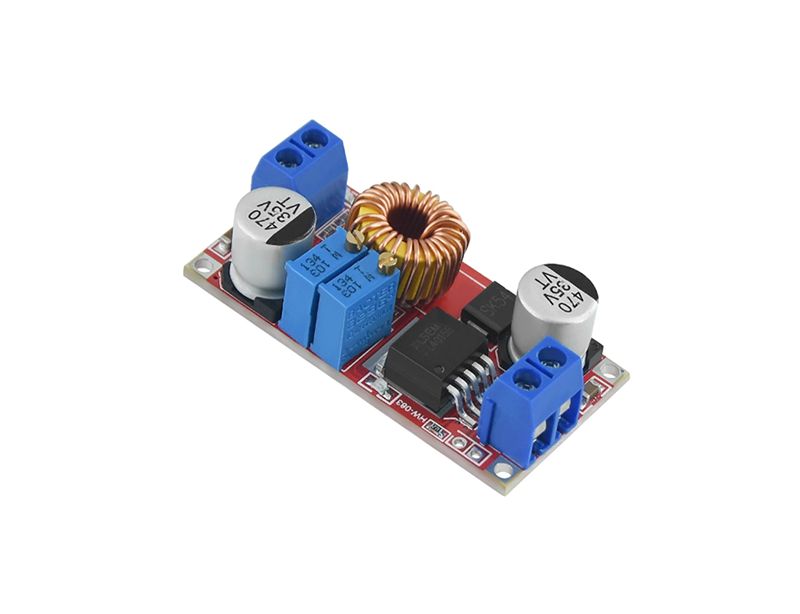

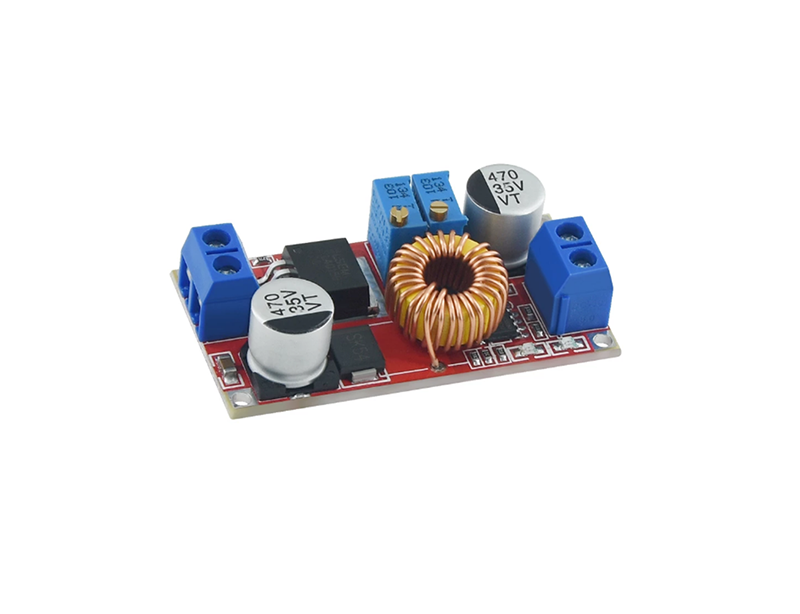

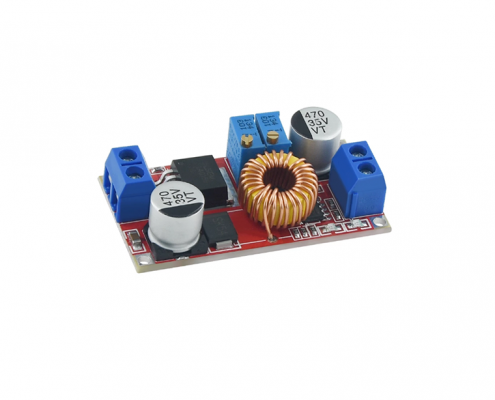

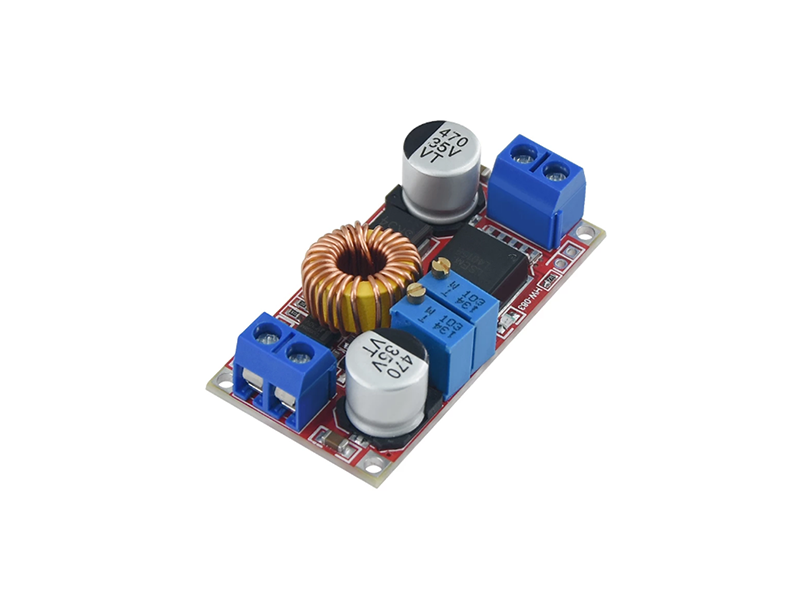

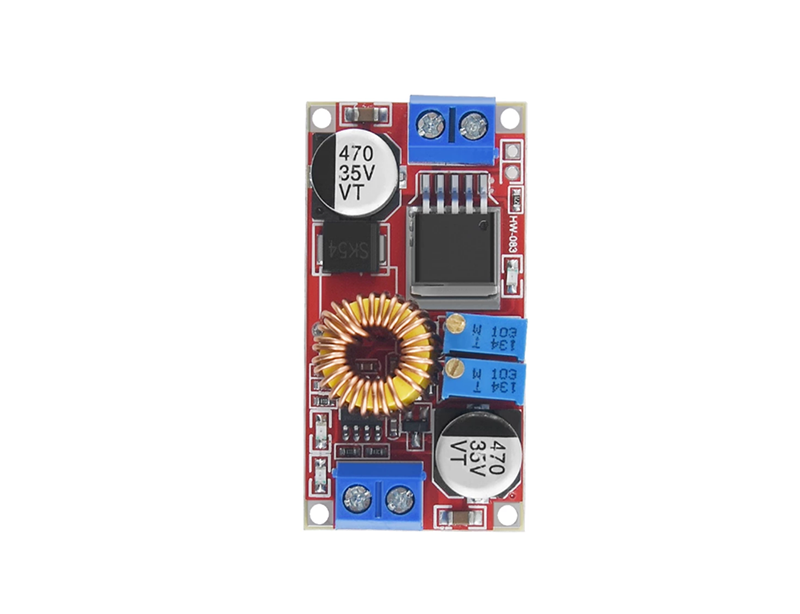

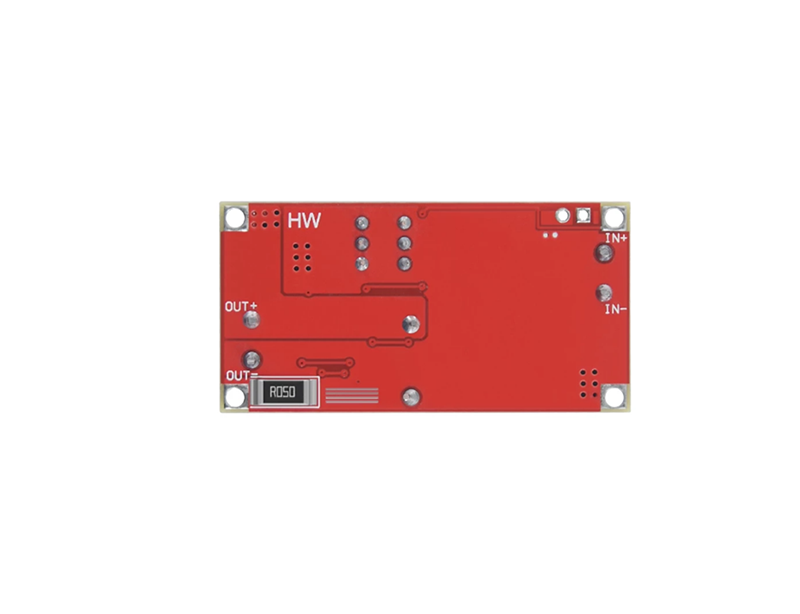

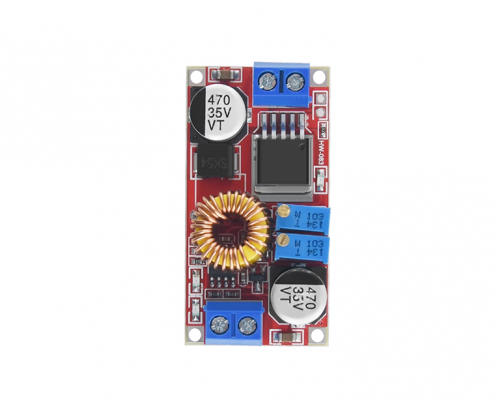

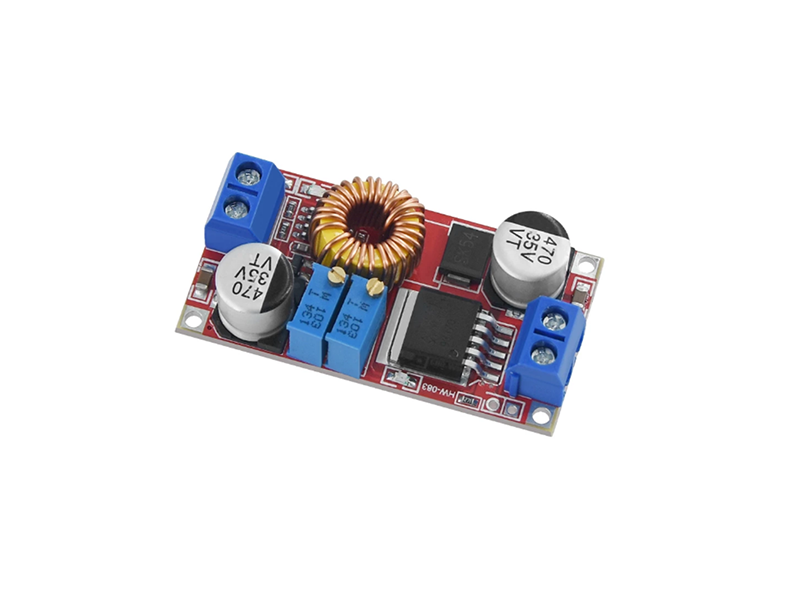

5A Constant Current LED Driver Module Battery Charging Constant Voltage DC-DC Power Module XL4015
Product Description
100% Brand New & High Quality
- 1.High power,high efficiency,5A,low ripple.
2.It has two modes of constant voltage and constant current,and there is an indicator light to indicate which mode the module is currently in.
3.When used as a lithium battery charger, you can set the float voltage and charging current,and there is an indicator light to indicate whether it is charging or fully charged.
4.With current-limiting protection function, the module will not be burnt out even if the output is short-circuited.
Product Details
Specification:
1.Input voltage:4-38V
2.Output voltage:1.25-36V continuously adjustable
3.Output current:adjustable,maximum 5A
4.Output power:max 75W
5.Working temperature:-40~+85 degrees
6.Working frequency:180KHz
7.Conversion efficiency:up to 96%
8.Short circuit protection:Yes (limited current 8A)
9.Installation method:4 3mm screws
10.Module size:length 51.2mm width 26.2mm height 15mm
Package Including:
1 * XL4015
