Product Model:
OKYN304-1

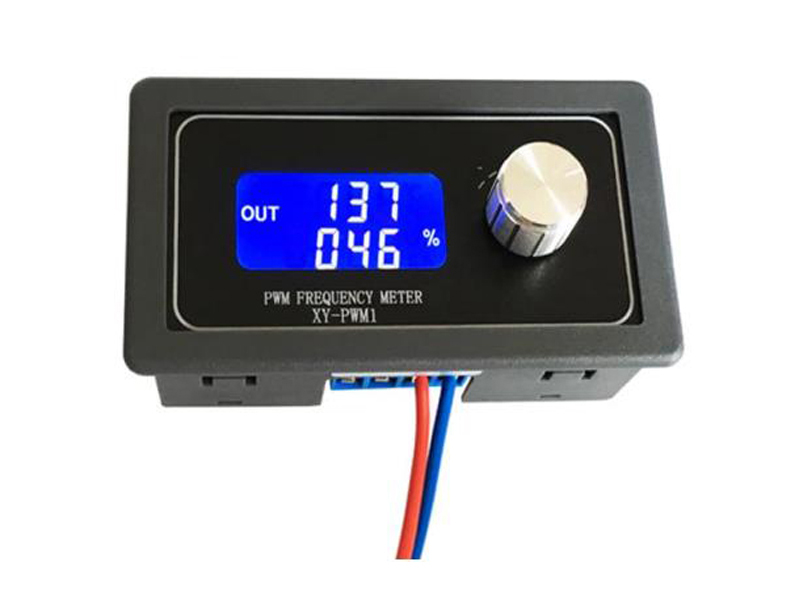

XY-PWM1 Signal Generator Module Adjustable PWM Pulse Frequency Duty Cycle Square Wave W315 1HZ-15KHZ
Product Description
100% Brand New & High Quality

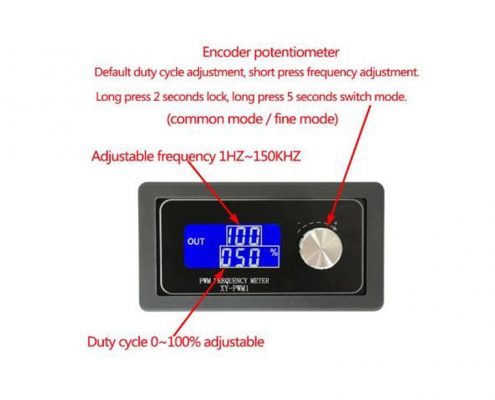

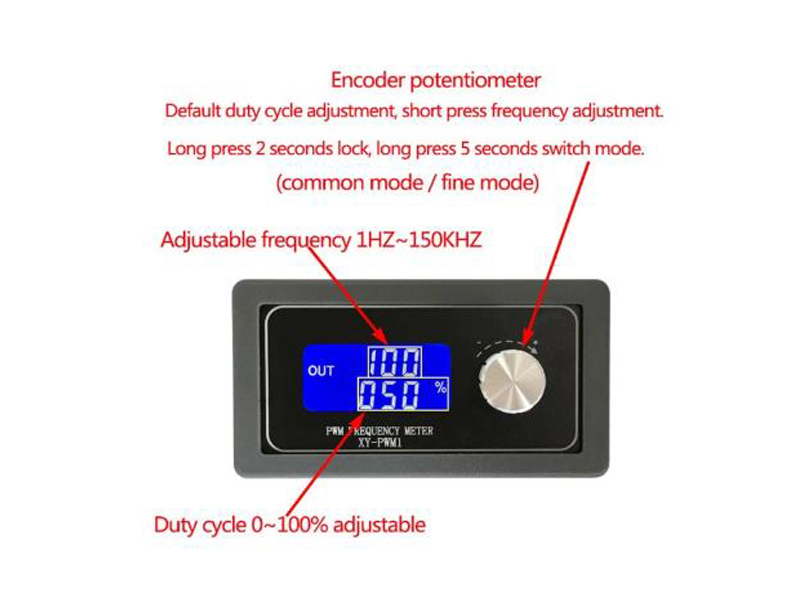

- PWM Output Can Set Frequency And Duty Cycle Respectively.
-
Frequency Is Divided Into Four Areas: Automatic Switching:
1.XXX (Without Decimal Point): The Smallest Unit Is 1Hz, And The Value Range Is 1Hz~999Hz;the Minimum Unit Of
2.X.XX (Decimal Point In 100 Bits) Is 0.01KHz, And The Value Range Is 1.00KHz~9.99KHz;
3.XX.X (Decimal Point In Ten Places): The Smallest Unit Is 0.1KHz; And The Range Is 10.0KHz~99.9KHz.
4.X.X.X (Decimal Point In Ten Bits And 100 Bits): The Smallest Unit Is 1KHz; And The Range Is 1KHz~150KHz.e.g. Frequency Display: 100 Indicates Pwm Output 100hz Pulse;1.01 Represents The Pulse Of Pwm Output 1.01k.54.1 Represents The Pulse Of Pwm Output 54.1khz.1.2.4 Indicates The Pulse Of Pwm Output 124khz.duty Cycle:0~100%;All Settings Are Saved By Power Down.
Product Details
Specification

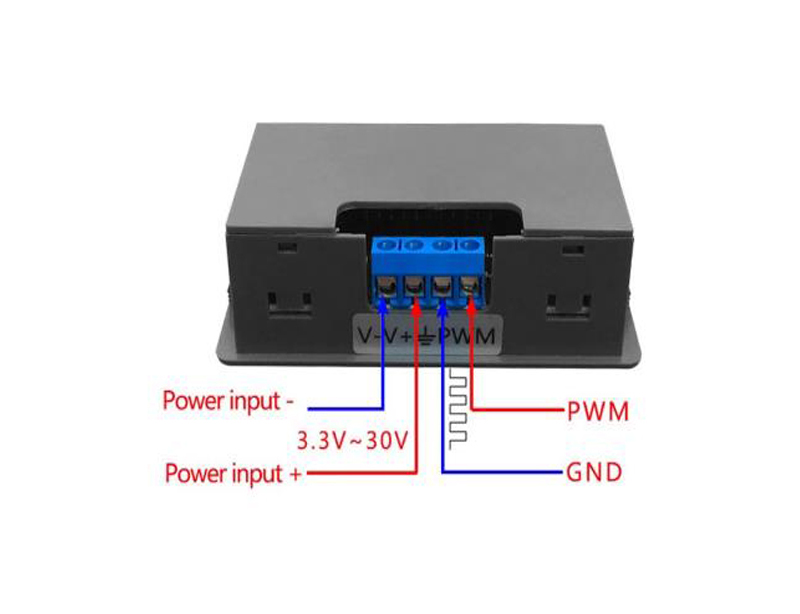

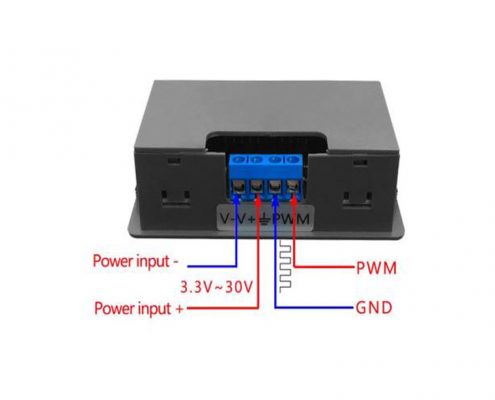

- Working Voltage: 3.3~30V
- Frequency Range: 1Hz~150KHz
- Frequency Accuracy: 2%
- Signal Load Capability: 5~30mA
- Output Amplitude: PWM Amplitude Equal To The Input Voltage Value

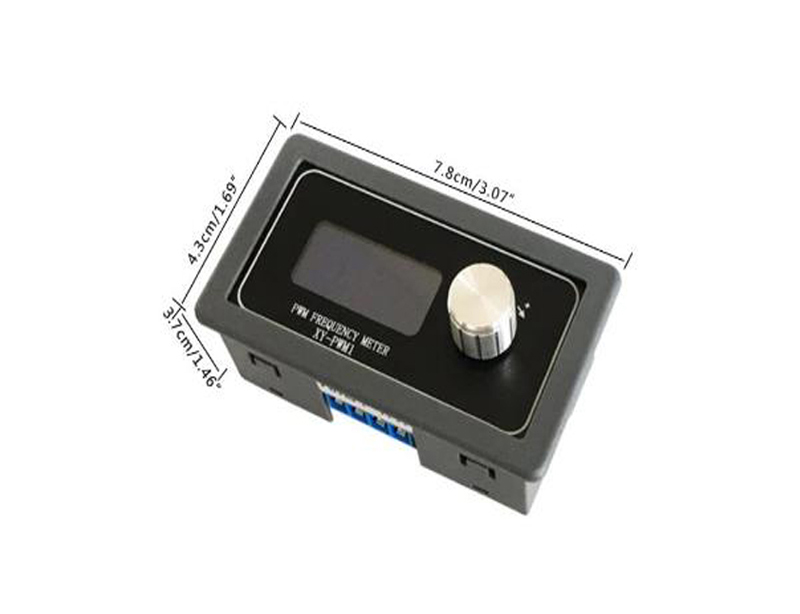

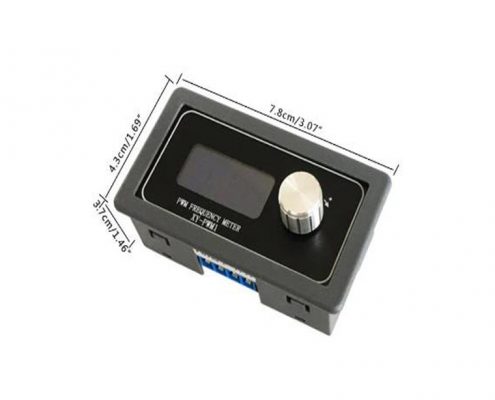

- Dimensions: 3.7×4.3×7.8cm
- Weight:45g
- Color: Black
- Ambient Temperature: -20~+70℃
- Application:Electronic Project
