Description:
1.6 kinds of commonly used functions to meet the needs of more applications
2.It can control 2-way solenoid valve, pumps, motors, lights and other running freely
3.Output Power: It can control within 30A DC or AC load
4.Time Range: 0.1 seconds to 999 minutes any time adjustable
Feature:
1.Model:YYB-5
2.Input Voltage: DC/ AC7V To 27V
3.Time Range: 0.1 seconds to 999 minutes
Wiring port Description:
- AC/DC : Input 7V To 27V
- IN1: Signal input 1 (negative trigger)
- IN2: Signal input terminal 2 (negative trigger)
- IN3: Signal input 3 (negative trigger)
- NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted
- COM: relay common interface
- NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension
Key Settings Description:
1.Power display “—-” that access to standby;
2.Press the first time K1, the screen shows: P-1: K2 and K3 adjustment mode
3.Press the second time K1, the screen shows: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
4.Press the third time K1, the screen shows: B001: K2 and K3 adjust the second time B, K4 adjust the decimal point (time unit)
5.Press the fourth time K1, the screen shows: C001: K2 and K3 adjust the third time C, K4 adjust the decimal point (time unit)
6.Press the fifth K1, display “—-” that entered the standby state;
7.Indicating the second mode of operation; after the signal 1; Relay 1 after 10 seconds to start off; Relay 2 to give the signal after delay 5 seconds after the start 1 second automatically shut down
Package Included:

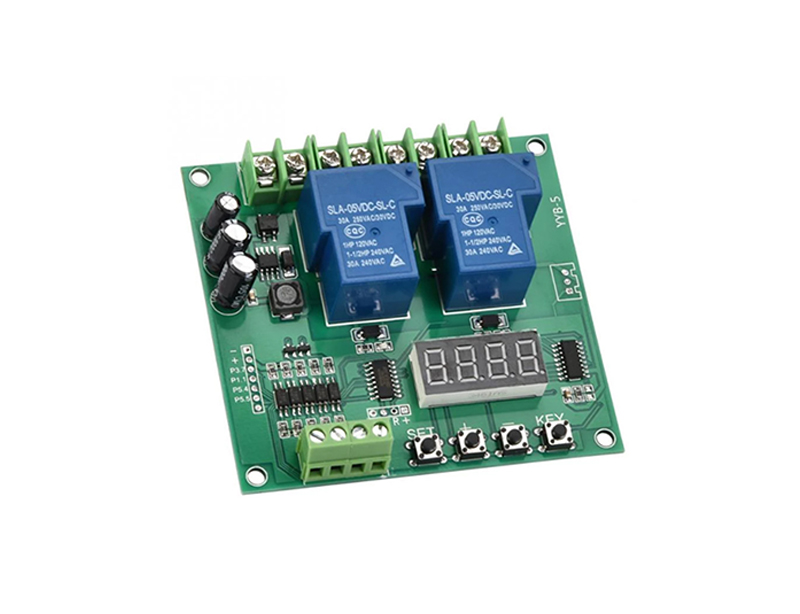

1pc* YYB-5 Motor Relay Delay Module
